Aluxor Vertical Screen + Pivot Arm Awnings

Folding Arm Awnings

Aluxor manufactures a range of high quality vertical screen and pivot arm awnings that are customised for residential and commercial applications.

ALUXOR VS II

ALUXOR VZ

PIVOT ARM II

MARKISOLETTE II

VOSS ROBB

About Vertical Screen + Pivot Arm Awnings

TECHNICAL FEATURES

  •  Provides shade and privacy for windows and outdoor rooms.
  • Extruded aluminium profiles for pelmets and cassettes provide long lasting quality that will not rust or vibrate in harsh conditions.
  • Construction hardware is made of marine grade 316 stainless steel.
  • Wind rating up to 38km/h.
  • Integrated LED lighting available for Aluxor VZ.

AUTOMATION

  • Remote control or hardwired motor operation.
  • Wind, motion, sun, rain and timer sensors available.

DETAIL

  • Increases the energy efficiency of the building: providing a shield against the heat in summer and provides insulation against the cold in winter months.

  • Can be easily integrated into existing pergola structures or new designs.

  • Wall and ceiling fixings available for various models.

  • German designed systems provide optimal reliability.

FABRIC

Aluxor uses a range of acrylic, PVC and mesh fabrics from leading European manufacturers.

PVC mesh fabrics are mostly preferred for vertical screens with variable light filtering openness of

86%, 92% and 96% available.

For pivot arm awnings either mesh fabrics or acrylic fabrics can be selected.

STANDARD COLOURS

aluxor-colours
aluxor-awning-colours

ALUXOR VS II

Vertical Screen Systems create shade with privacy

Aluxor’s external sunscreen systems block solar rays before they reach windows so providing the most effective solution to reducing the internal room temperature from the sun.

The Aluxor VS is a vertical screen awning in an extruded aluminium cassette 110mm x 120mm designed to protect the fabric bundle when retracted. The screen can extend to 5 metres wide and 3 metres high, making it ideal to shade large glass spans.

The vertical screen is available with either extruded aluminium guide channels or tensioned stainless steel side cables.

The Aluxor VS is stylish, innovative and highly reliable. It is available in 8 standard colours or in a selection of custom powdercoat colours and a variety of fabrics to compliment the awning. The awning can be operated manually by a crank handle and gear operation, or can be motorised with optional sun, wind and timer systems.

SPECIFICATIONS:

DIMENSIONS (H X D): 110mm x 120mm

WIDTH SINGLE UNIT:  0.7m – 5m

DROP RANGE: up to 3m

MAX AREA (SINGLE UNIT): 15m²

COLOURS: 8 Standard /140 Custom

OPERATION:  Manual or Motorised

DETAIL IMAGES

ALUXOR VZ

Contemporary geometric design – create the Wow factor!

The Aluxor VZ is a contemporary vertical screen ideal as a window shade cover or can be integrated into a free-standing pergola frame, retractable roofing structure or louvered roof to create the outdoor entertaining room. The Cubix designed aluminum headbox complements any modern architectural finish where style and functionality are demanded.

The German engineered Aluxor VZ is designed with a robust side tensioned lateral fabric seal that is concealed inside the extruded aluminum guiderail channels when extended, so eliminating light gaps to maximizes your vertical shade and protection from the elements.

An optional feature of the Aluxor VZ is the integration of LED Lighting into the headbox, so providing ideal ambience for entertaining both day and night.

The Aluxor VZ can be fitted with a PVC mesh fabric to optimise shade and privacy whilst still enjoying the vista and outdoor ambience. Available in sizes up to 5m wide by 3m drop, the Aluxor VZ is available in 8 standard colours or a range of customised colours and can be manually operated or include motorisation and other automation features such as sun and wind sensors.

The Aluxor VZ is the leading design in contemporary vertical sunshade solutions.



SPECIFICATIONS:

DIMENSIONS (H X D): 110mm x 150mm

WIDTH SINGLE UNIT / COUPLED: 0.7m – 5m

DROP RANGE:  up to 3m

MAX AREA (SINGLE UNIT): 15m²

COLOURS: 8 Standard / 140 Custom

OPERATION: Manual or Motorised

DETAIL IMAGES

PIVOT ARM II

Create shade with space

The Aluxor Pivot Arm Cassette is a projection window awning. The arms are stretched by the spring system to a maximum inclination of 155° giving stability in windy conditions.

It is constructed from high quality extruded aluminium with the cassette size being 110mm high x 120mm deep. The single unit can be up to 5 metres wide with projections of 0.8 metres to 1.5 metres depending on the width and type of fabric.

The Aluxor Pivot Arm is available in 8 standard colours or in a selection of custom powdercoat colours and a variety of fabrics to complement the awning. The system can be operated manually by a crank handle and gear operation, or can be motorised with optional sun, wind and timer systems.

SPECIFICATIONS:

DIMENSIONS (H X D): 110mm x 120mm

WIDTH SINGLE UNIT: 2m – 5m

PROJECTION RANGE: 0.8m – 1.5m

MAX AREA (SINGLE UNIT): 15m²

ANGLE RANGE: Up to 155º

COLOURS: 8 Standard / 140 Custom

OPERATION:  Manual or Motorised

DETAIL IMAGES

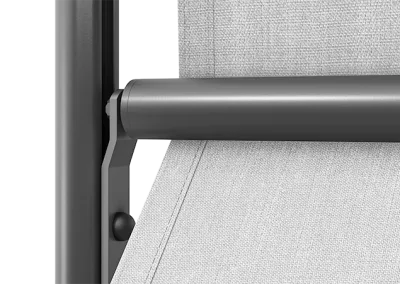

MARKISOLETTE II

Elegant European design

The Aluxor Markisolette is ideal for long vertical spans of glazing such as high windows in commercial and retail settings. The Markisolette adds aesthetic appeal to contemporary architectural facades while providing shade and glare relief.

The arms work on a spring tensioned system pivoting up to a maximum of 90°. This allows for ventilation between the awning cover and glass, allowing natural light to enter the room. It can be fitted with a see through fabric to maintain the external view while providing shade and resistance to the suns heat, glare and damaging UV rays.

The Markisolette is available in a range of 140 custom powdercoat colours and a variety of fabrics to compliment the awning. The system is supplied as manual or motorised operation.

SPECIFICATIONS:

DIMENSIONS (H X D): 110mm x 120mm

WIDTH SINGLE UNIT: 1m – 3m

DROP/EXTENSION: 2.75m / 0.5m

MAX AREA (SINGLE UNIT): 8.25m²

ANGLE RANGE: Up to 158º

COLOURS: 8 Standard / 140 Custom

OPERATION: Manual or Motorised

VOSS ROBB

Create shade with style

The Voss Robb Pivot Arm Awning is an adaptable and economic window shade solution that provides sun protection whilst maintaining airflow.

Ideal for residential and commercial applications, the Voss Robb combines classical design with long lasting performance.

The system operates with two spring tension arms rated to 38 km/hr, so enabling robust performance even in the harshest weather conditions.

The versatile design of the Voss Robb enables the inclination of the extension arms to be continuously adjusted up to 155°, as required, or be adapted as a fixed arm canopy shade.

The Voss Robb is available with or without a protective metal hood, depending on the installation location and application.

The single unit can be up to 5 metres wide with arm projections of 0.8 metres to 1.5 metres depending on the width and type of fabric and is available in 8 standard colours or in a selection of custom powdercoat colours and a variety of fabrics to compliment the awning.

The system can be operated manually by a crank handle, or can be motorised with optional sun and wind sensors.

SPECIFICATIONS:

DIMENSIONS (H X D): 110mm x 100mm

WIDTH SINGLE UNIT: 2m – 5m

PROJECTION RANGE: 0.8m – 1.5m

MAX AREA (SINGLE UNIT): 15m²

ANGLE RANGE: Up to 155º

COLOURS: 8 Standard / 140 Custom

OPERATION:  Manual or Motorised

DETAIL IMAGES
